Servo Motor Hot Plate Welding Machine for Precise Plastic Joining
A servo motor hot plate welding machine is designed for thermoplastic parts that require precise motion control, repeatable positioning and stable welding parameters. Jfortune supplies servo hot plate welders, custom fixtures and tooling for automotive parts, battery components, appliance housings, medical plastic products, filter housings and industrial assemblies.
Servo control helps manage stroke, pressure, speed and repeatability during heating, transfer, pressing and cooling. It is suitable for production lines with higher consistency requirements, complex parts, strict appearance standards or data-controlled process management.
Jfortune can configure servo hot plate welding machines with PLC/HMI control, recipe management, fixture quick-change, safety guarding, sample welding tests and automation interfaces. For OEM/ODM factories and integrators, we review material, weld geometry, cycle time, quality targets and production capacity before recommending a machine and tooling plan.
Frequently asked: Why choose servo instead of pneumatic or hydraulic? Choose servo when process repeatability, positioning accuracy, adjustable motion and production data control are more important than the lowest machine cost.
- suitable for products with small size and complex shape
- Small size,flexible and convenient
- Equipment temperature control precisely.
- The machine can realize intelligent quick change tool
- Servo motor control speed quickly, high precision and high efficiency
- Upper and lower tool is driven by lead screw, hot plate is driven by gear and rack
- Change tool type:manual, semi-auto mode, one-key to change
| Machine Type: | JF-780 |
| pressure: | 6-10bar |
| Max Power: | 84.72kw |
| Ambient temperature: | 15℃-40℃ |
| Power source: | Servo motor |
| machine weight: | 2550kg |
| Machine change tool position: | front side |
| position precision | 0.05mm |
| Speed control | servo motor speed change |
- Suitable for products with large size and complex shape
- Equipment temperature control precisely
- The machine can realize intelligent quick change tool
- The equipment’s cold tools and hot tools adopt double-drive structure to ensure the stability
- Servo motor control speed quickly, high precision and high efficiency
- Gear and rack
- Change tool type:manual, semi-auto mode, one-key to change
| Machine Type: | HC-880 |
| pressure: | 6-10bar |
| Max Power: | 90 kw |
| Close tool pressure: | 1800kg |
| Ambient temperature: | 15℃-40℃ |
| Power source: | Servo motor |
| machine weight: | 5200kg |
| Machine change tool position: | front side |
| position precision | 0.05mm |
| Speed control | servo motor stepless speed change |
- Suitable for products with large size and complex shape
- Equipment temperature control precisely
- The machine can realize intelligent quick change tool
- The equipment’s cold tools and hot tools adopt double-drive structure to ensure the stability
- Servo motor control speed quickly, high precision and high efficiency
- Gear and rack
- Change tool type:manual, semi-auto mode, one-key to change
| Machine Type: | HC-980 |
| pressure: | 6-10bar |
| Max Power: | 178.7kw |
| Close tool pressure: | 1800kg |
| Ambient temperature: | 15℃-40℃ |
| Power source: | Servo motor |
| machine weight: | 6100kg |
| Machine change tool position: | front side |
| position precision | 0.05mm |
| Speed control | servo motor stepless speed change |
Machine Repeat positioning accuracy report

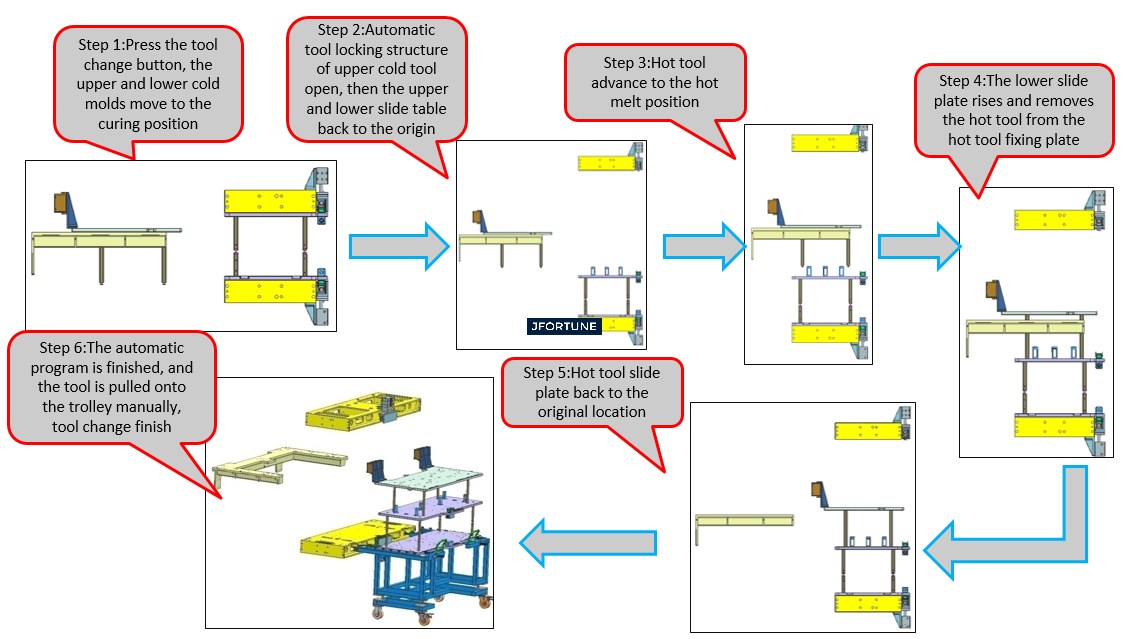

Auto quick changing tool function
Training, acceptance and after-sales service
First, after the equipment is sent to the customer plant, the supplier is responsible for the technical personnel of the customer to carry out operation technology and maintenance training, so that these technical personnel can be professional with the correct use of the equipment, and can carry out basic maintenance work on the equipment.
Second, if the technical personnel of the customer need to understand other technical requirements, the supplier shall provide the required technical guidance to the customer personnel in a timely manner by telephone, fax or directly to the customer factory.
Third, acceptance standards and methods in accordance with the “Technical Agreement” and “Product Manual” signed by both parties.
Four, after-sales service and warranty period
The equipment free warranty for 12 months, lifelong tracking and maintenance services.
Five,Technical Confidentiality
Drawings, data, samples and other technical information and physical objects provided by both parties should be strictly confidential and should not be transferred or lent to a third party for use.
Buyer’s Guide:
We believe in giving you the freedom to make decisions that work best for you. Here are some recommendations to consider when purchasing our products.
Budget: Determine your budget for the machine you want to buy. Research products available within your budget range. We assure you that we offer the best products within your budget.
Customer Reviews: Check customer reviews, both positive and negative, to get an idea of the satisfaction level of our products. If you find everything satisfactory, proceed with the purchase. We are always here to assist you.
Follow these 9 simple steps to buy from Jfortune:
- Consultation: We will discuss your requirements through 3D datas, product pictures, machine requirement or a meeting via Zoom/Teams, also can visit customer plant for more detailed discussion.
- Quotation: We will provide you with a detailed quotation, including the best parts, accessories, jigs, robots, and affordable prices.
- Process Evaluation: Both parties carefully evaluate technical parameters, specifications, and business terms to avoid any misunderstandings.
- Placing Order: If you are confident, we will send you a Proforma Invoice (PI) and sign a contract with you.
- Production: Once we receive your contract and deposit, we will start the machines production. We will keep you updated on the production progress.
- Inspection: The production process undergoes regular inspection and strict quality control. The machines are thoroughly tested before leaving the factory.
- Delivery: We will arrange the delivery as agreed upon in the contract.
- Custom Clearance: We will provide all necessary shipping documents and ensure a smooth customs clearance process.
- Support and Service: We offer professional technical support and 24/7 customer service through various channels like Phone, Email, Skype, WhatsApp, WeChat, and Remote Service. We are committed to providing you with the best support and assistance throughout the buying process.
